U Shaped Metal Channel Building Structure SS Profile 100x48x5.3 Stainless Steel Free Sample

U Shaped Metal Channel Building Structure SS Profile 100x48x5.3 Stainless Steel

5/5

U Shaped Metal Channel Building Structure SS Profile 100x48x5.3 Stainless Steel

Product Name
U Shaped Metal Channel
Size
100*50*5*7 mm~700*300*13*24 mm
Material
201,304,309,316,316L,321,410,430,904
OEM
Yes

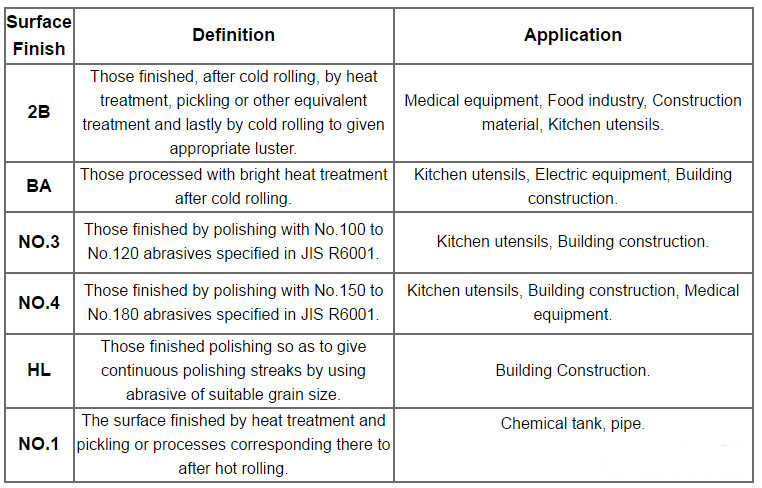

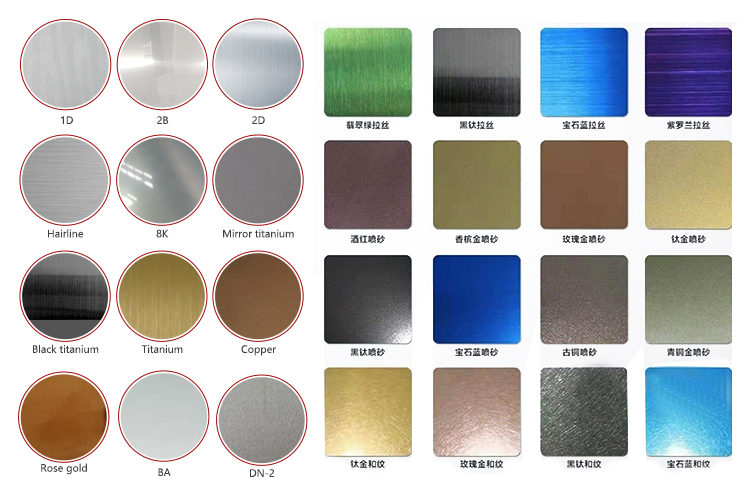

Surface
NO.1 NO.4 Bright
Standard
AiSi, ASTM, bs, DIN, GB, JIS

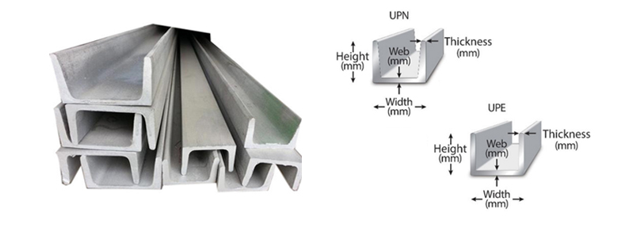

Sectional Dimension
Kg/m
Sectional Dimension
Kg/m
100*50*5*7
9.54
344*354*16*16
131
100*100*6*8
17.2
346*174*6*9
41.8
125*60*6*8
13.3
350*175*7*11
50
125*125*6.5*9
23.8
344*348*10*16
115
148*100*6*9
21.4
350*350*12*19
137
150*75*5*7
14.3
388*402*15*15
141
150*150*7*10
31.9
390*300*10*16
107
175*90*5*8
18.2
394*398*11*18
147
175*175*7.5*11
40.3
400*150*8*13
55.8
194*150*6*9
31.2
396*199*7*11
56.7
198*99*4.5*7
18.5
400*200*8*13
66
200*100*5.5*8
21.7
400*400*13*21
172
200*200*8*12
50.5
400*408*21*21
197
200*204*12*12
72.28
414*405*18*28
233
244*175*7*11
44.1
440*300*11*18
124
244*252*11*11
64.4
446*199*7*11
66.7
248*124*5*8
25.8
450*200*9*14
76.5
250*125*6*9
29.7
482*300*11*15
115
250*250*9*14
72.4
488*300*11*18
129
250*255*14*14
82.2
496*199*9*14
79.5
294*200*8*12
57.3
500*200*10*16
89.6
300*150*6.5*9
37.3
582*300*12*17
137
294*302*12*12
85
588*300*12*20
151
300*300*10*15
94.5
596*199*10*15
95.1
300*305*15*15
106
600*200*11*17
106
338*351*13*13
106
700*300*13*24
185

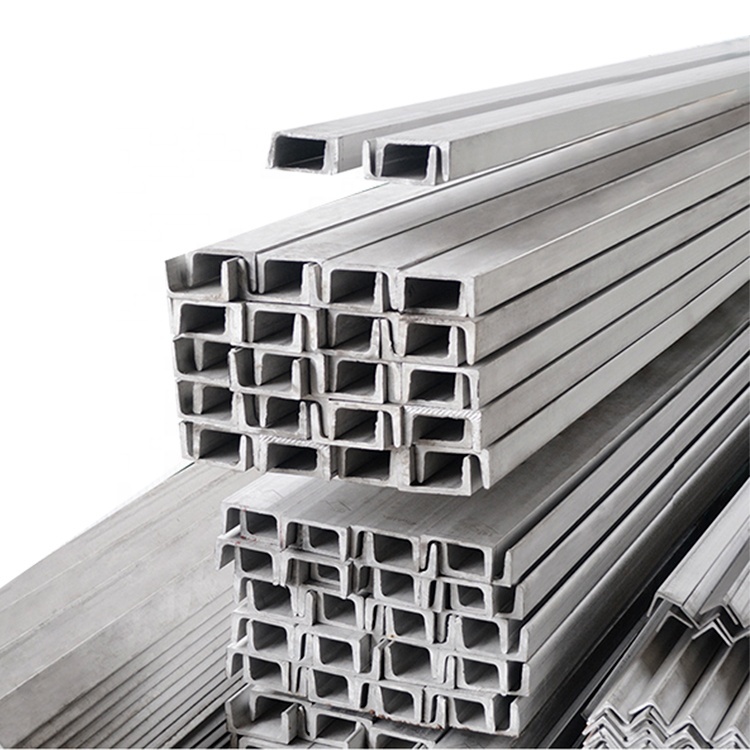

U Shaped Metal Channel
H3678e56cb5a84c72af239fa7b002345b9
U Shaped Metal Channel
U Shaped Metal Channel
U Shaped Metal Channel
U Shaped Metal Channel

Chemical composition and mechanical properties

of stainless steel
Grade
Chemical Composition (%)
Mechanieal Performece
C
Si
Mn
P
S
Ni
Cr
Mo
Hardness
201
≤0.15
≤1.00
5.5/7.5
≤0.060
≤0.03
3.5/5.5
16.0/18.0
HB≤241,HRB≤100, HV≤240
304
≤0.08
≤1.00
≤2.00
≤0.045
≤0.03
8.0/11.0
18.00/20.00
HB≤187,HRB≤90,HV≤200
316
≤0.08
≤1.00
≤2.00
≤0.045
≤0.03
10.00/14.00
16.0/18.0
2.00/3.00
HB≤187, HRB≤90 HV≤200
316L
≤0.03
≤1.00
≤2.00
≤0.045
≤0.03
10.00/14.00
16.0/18.0
2.00/3.00
HB≤187, HRB≤90 HV≤200
410
≤0.15
≤1.00
≤1.25
≤0.060
≤0.03
≤0.060
11.5/13.5
HB≤183, HRB≤88 HV≤200
430
≤0.12
≤1.00
≤1.25
≤0.040
≤0.03
16.00/18.00
HB≤183, HRB≤88 HV≤200
Ha764569361544fc0bcb864c50026827ee
U Shaped Metal Channel
U Shaped Metal Channel
